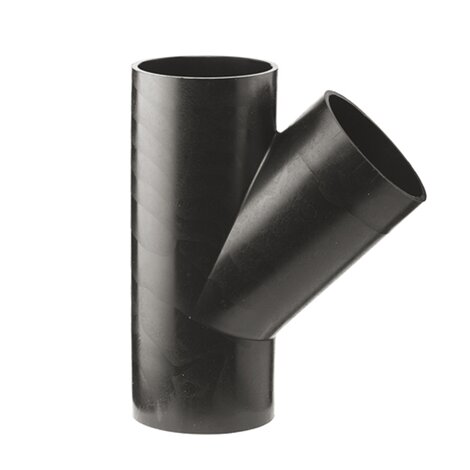

Derivación 45º

Derivación 45º en Y
Derivación 45º
Referencia Unidades por caja Medida L l3 D1 D2 k1 k2 k3 product.detail.attribute.l1L2
K300404 1 40/40 135 45 40/40 30 30 25 90
K300504 1 50/40 165 55 50/40 45 45 40 110
K300505 1 50/50 165 55 50/50 20 20 35 110
K300604 1 63/40 195 65 63/40 40 45 45 130
K300605 1 63/50 195 65 63/50 30 30 50 130
K300606 1 63/63 195 65 63/63 20 20 40 130
K300656 1 63/56 195 65 63/56 25 25 45 130
K300704 1 75/40 210 70 75/40 60 50 65 140
K300705 1 75/50 210 70 75/50 40 30 70 140
K300706 1 75/63 210 70 75/63 35 25 45 140
K300707 1 75/75 210 70 75/75 25 25 40 140
K300756 1 75/56 210 70 75/56 35 25 55 140
K300904 1 90/40 240 80 90/40 65 55 75 160
K300905 1 90/50 240 80 90/50 50 40 80 160
K300906 1 90/63 240 80 90/63 40 30 70 160
K300907 1 90/75 240 80 90/75 35 30 65 160
K300909 1 90/90 240 80 90/90 20 20 50 160
K300956 1 90/56 240 80 90/56 45 35 75 160
K301104 1 110/40 270 90 110/40 75 60 95 180
K301105 1 110/50 270 90 110/50 55 50 95 180
K301106 1 110/63 270 90 110/63 40 35 85 180
K301107 1 110/75 270 90 110/75 35 30 75 180
K301109 1 110/90 270 90 110/90 30 25 65 180
K301111 1 110/110 270 90 110/110 20 20 55 180
K301156 1 110/56 270 90 110/56 45 40 90 180
K301204 1 125/40 300 100 125/40 115 60 75 200
K301205 1 125/50 300 100 125/50 115 60 75 200
K301206 1 125/63 300 100 125/63 60 45 105 200
K301207 1 125/75 300 100 125/75 50 40 95 200
K301209 1 125/90 300 100 125/90 35 30 30 200
K301211 1 125/110 300 100 125/110 25 25 25 200
K301212 1 125/125 300 100 125/125 20 20 20 200
K301256 1 125/56 300 100 125/56 110 50 45 200
K301605 1 160/50 375 125 160/50 120 115 65 250
K301606 1 160/63 375 125 160/63 120 115 65 250
K301607 1 160/75 375 125 160/75 120 115 65 250
K301609 1 160/90 375 125 160/90 110 105 55 250
K301611 1 160/110 375 125 160/110 50 40 45 250
K301612 1 160/125 375 125 160/125 10 20 40 250
K301616 1 160/160 375 125 160/160 10 15 25 250
K301656 1 160/56 375 125 160/56 120 115 65 250
K302007 1 200/75 540 180 200/75 95 160 175 360
K302009 1 200/90 540 180 200/90 80 150 165 360
K302011 1 200/110 540 180 200/110 65 140 150 360
K302012 1 200/125 540 180 200/125 55 130 140 360
K302016 1 200/160 540 180 200/160 35 85 115 360
K302020 1 200/200 700 270 200/200 160 160 230 430
K302511 1 250/110 660 220 250/110 150 185 215 440
K302512 1 250/125 660 220 250/125 140 175 205 440
K302516 1 250/160 660 220 250/160 120 130 180 440
K302520 1 250/200 660 220 250/200 90 50 150 440
K302525 1 250/250 900 300 250/250 160 160 250 600
K303111 1 315/110 840 280 315/110 235 260 305 560
K303112 1 315/125 840 280 315/125 220 250 290 560
K303116 1 315/160 840 280 315/160 200 205 270 560
K303120 1 315/200 840 280 315/200 175 125 240 560
K303125 1 315/250 840 280 315/250 140 130 205 560
K303131 1 315/315 950 340 315/315 170 170 280 610
K305604 1 56/40 180 60 56/40 35 30 60 120
K305605 1 56/50 180 60 56/50 30 30 40 120
K305656 1 56/56 180 60 56/56 25 25 40 120
