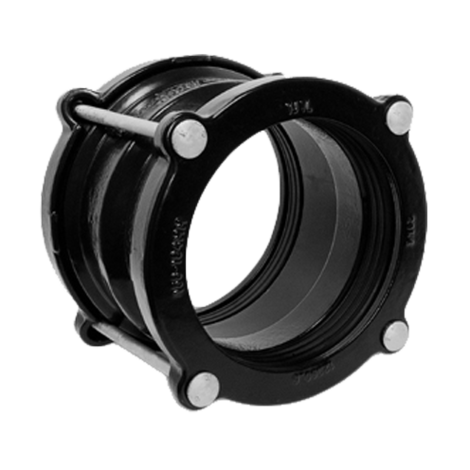

Acoplamiento reductor de gran alcance (pieza en U)
Acoplamiento reductor para conectar tuberías de diferentes materiales (acero, fundición, fundición dúctil, cemento de amianto, PVC, PE-HD/PEX).
- Carcasa y anillo seguidor de acero
- Protección anticorrosión Rilsan (mín. 250 µm según GSK)
- Tornillos y tuercas galvanizados/revestidos o de acero inoxidable
- Material de la junta EPDM
- Tolerancia de diámetro máx. 17 mm
- Los tubos pueden inclinarse un máximo de 6 grados
- Rango de temperatura: -20°C - +30°C
Nota:
Para el uso en tubos PE-HD/PEX se requiere nuestro manguito de soporte interior SHVA Como alternativa, recomendamos el producto de bloqueo de fuerza longitudinal FRIAGRIP.
Acoplamiento reductor de gran alcance (pieza en U)
| Referencia | d1 | d2 | Uds. de embalaje | Peso | DN |
|---|---|---|---|---|---|
| GB-99R9-315351 | 315,0-332,0 | 351,0-368,0 | 1 | 44,000 | 300 |
| GB-99R9-315367 | 315,0-332,0 | 367,0-384,0 | 1 | 22,300 | 300 |
| GB-99R9-351374 | 351,0-368,0 | 374,5-391,5 | 1 | 32,400 | 350 |
| GB-99R9-374394 | 374,5-391,5 | 394,3-411,3 | 1 | 34,500 | 350 |
| GB-99R9-374404 | 374,5-391,5 | 404,8-421,8 | 1 | 36,500 | 350 |
| GB-99R9-394418 | 394,3-411,3 | 418,2-435,2 | 1 | 36,500 | 350 |
| GB-99R9-394425 | 394,3-411,3 | 425,0-442,0 | 1 | 35,600 | 350 |
| GB-99R9-404425 | 404,8-421,8 | 425,0-442,0 | 1 | 38,800 | 400 |
| GB-99R9-425434 | 425,0-442,0 | 434,4-451,4 | 1 | 38,900 | 400 |
| GB-99R9-425447 | 425,0-442,0 | 447,0-464,0 | 1 | 39,100 | 400 |
| GB-99R9-425455 | 425,0-442,0 | 455,0-472,0 | 1 | 39,500 | 400 |
| GB-99R9-425476 | 425,0-442,0 | 476,0-493,0 | 1 | 39,500 | 400 |
| GB-99R9-425487 | 425,0-442,0 | 487,0-504,0 | 1 | 68,000 | 400 |
| GB-99R9-447455 | 447,2-464,2 | 455,0-472,0 | 1 | 49,500 | 400 |
| GB-99R9-447476 | 447,2-464,2 | 476,0-493,0 | 1 | 43,000 | 400 |
| GB-99R9-447501 | 447,2-464,2 | 501,9-518,9 | 1 | 43,000 | 400 |
| GB-99R9-447510 | 447,2-464,2 | 510,0-527,0 | 1 | 43,600 | 400 |
| GB-99R9-447540 | 447,2-464,2 | 540,1-557,1 | 1 | 47,400 | 400 |
| GB-99R9-476487 | 476,0-493,0 | 487,3-504,3 | 1 | 42,700 | 400 |
| GB-99R9-476501 | 476,0-493,0 | 501,9-518,9 | 1 | 43,000 | 400 |
| GB-99R9-476510 | 476,0-493,0 | 510,0-527,0 | 1 | 43,600 | 400 |
| GB-99R9-487527 | 487,0-504,0 | 527,0-544,0 | 1 | 47,700 | 400 |
| GB-99R9-501527 | 501,0-518,0 | 527,0-545,0 | 1 | 47,700 | 500 |
| GB-99R9-510527 | 510,0-527,0 | 527,0-545,0 | 1 | 47,700 | 500 |
| GB-99R9-528540 | 527,0-544,0 | 540,1-557,1 | 1 | 47,400 | 500 |
| GB-99R9-528555 | 527,0-544,0 | 555,3-572,3 | 1 | 47,600 | 500 |
| GB-99R9-528566 | 527,0-544,0 | 566,5-583,5 | 1 | 47,800 | 500 |
| GB-99R9-528582 | 527,0-544,0 | 582,2-599,2 | 1 | 48,000 | 500 |
| GB-99R9-527598 | 527,0-544,0 | 598,0-615,0 | 1 | 48,000 | 500 |
| GB-99R9-527601 | 527,0-544,0 | 601,0-618,0 | 1 | 48,000 | 500 |
| GB-99R9-527630 | 527,0-544,0 | 630,0-647,0 | 1 | 48,000 | 500 |
| GB-99R9-555566 | 555,3-572,3 | 566,5-583,5 | 1 | 47,800 | 500 |
| GB-99R9-598630 | 598,0-615,0 | 630,0-647,0 | 1 | 56,100 | 600 |
| GB-99R9-601630 | 601,0-618,0 | 630,0-647,0 | 1 | 56,100 | 600 |
| GB-99R9-630645 | 630,0-647,0 | 645,2-662,2 | 1 | 55,800 | 600 |
| GB-99R9-630662 | 630,0-647,0 | 662,0-679,0 | 1 | 56,100 | 600 |
| GB-99R9-630675 | 630,0-647,0 | 675,0-692,0 | 1 | 57,000 | 600 |
Acoplamiento reductor de gran alcance (pieza en U)
| Referencia | d1 | d2 | Uds. de embalaje | Peso | DN |
|---|---|---|---|---|---|
| GB-99R9X315351 | 315,0-332,0 | 351,0-368,0 | 1 | 32,100 | 300 |
| GB-99R9X315367 | 315,0-332,0 | 367,0-384,0 | 1 | 22,300 | 300 |
| GB-99R9X351374 | 351,0-368,0 | 374,5-391,5 | 1 | 34,200 | 350 |
| GB-99R9X374394 | 374,5-391,5 | 394,3-411,3 | 1 | 34,500 | 350 |
| GB-99R9X374404 | 374,5-391,5 | 404,8-421,8 | 1 | 36,500 | 350 |
| GB-99R9X394418 | 394,3-411,3 | 418,2-435,2 | 1 | 36,500 | 350 |
| GB-99R9X394425 | 394,3-411,3 | 425,0-442,0 | 1 | 37,500 | 350 |
| GB-99R9X404425 | 404,8-421,8 | 425,0-442,0 | 1 | 37,500 | 400 |
| GB-99R9X425434 | 425,0-442,0 | 434,4-451,4 | 1 | 38,900 | 400 |
| GB-99R9X425447 | 425,0-442,0 | 447,0-464,0 | 1 | 39,100 | 400 |
| GB-99R9X425455 | 425,0-442,0 | 455,0-472,0 | 1 | 39,500 | 400 |
| GB-99R9X425476 | 425,0-442,0 | 476,0-493,0 | 1 | 55,000 | 400 |
| GB-99R9X425487 | 425,0-442,0 | 487,0-504,0 | 1 | 68,000 | 400 |
| GB-99R9X447455 | 447,2-464,2 | 455,0-472,0 | 1 | 39,500 | 400 |
| GB-99R9X447476 | 447,2-464,2 | 476,0-493,0 | 1 | 43,000 | 400 |
| GB-99R9X447501 | 447,2-464,2 | 501,9-518,9 | 1 | 43,000 | 400 |
| GB-99R9X447510 | 447,2-464,2 | 510,0-527,0 | 1 | 43,600 | 400 |
| GB-99R9X447540 | 447,2-464,2 | 540,1-557,1 | 1 | 47,400 | 400 |
| GB-99R9X476487 | 476,0-493,0 | 487,3-504,3 | 1 | 42,700 | 400 |
| GB-99R9X476501 | 476,0-493,0 | 501,9-518,9 | 1 | 43,000 | 400 |
| GB-99R9X476510 | 476,0-493,0 | 510,0-527,0 | 1 | 43,600 | 400 |
| GB-99R9X487527 | 487,0-504,0 | 527,0-545,0 | 1 | 47,700 | 400 |
| GB-99R9X501527 | 501,0-518,0 | 527,0-545,0 | 1 | 47,700 | 500 |
| GB-99R9X510527 | 510,0-527,0 | 527,0-545,0 | 1 | 47,700 | 500 |
| GB-99R9X528540 | 527,0-544,0 | 540,1-557,1 | 1 | 47,400 | 500 |
| GB-99R9X528555 | 527,0-544,0 | 555,3-572,1 | 1 | 47,600 | 500 |
| GB-99R9X528566 | 527,0-544,0 | 566,5-583,5 | 1 | 47,800 | 500 |
| GB-99R9X528582 | 527,0-544,0 | 582,2-599,2 | 1 | 48,000 | 500 |
| GB-99R9X527598 | 527,0-544,0 | 598,0-615,0 | 1 | 63,000 | 500 |
| GB-99R9X527601 | 527,0-544,0 | 601,0-618,0 | 1 | 48,000 | 500 |
| GB-99R9X527630 | 527,0-544,0 | 630,0-647,0 | 1 | 48,000 | 500 |
| GB-99R9X555566 | 555,3-572,3 | 566,5-583,5 | 1 | 47,800 | 500 |
| GB-99R9X598630 | 598,0-615,0 | 630,0-647,0 | 1 | 56,100 | 600 |
| GB-99R9X601630 | 601,0-618,0 | 630,0-647,0 | 1 | 56,100 | 600 |
| GB-99R9X630645 | 630,0-647,0 | 645,2-662,2 | 1 | 55,800 | 600 |
| GB-99R9X630662 | 630,0-647,0 | 662,0-679,0 | 1 | 56,100 | 600 |
| GB-99R9X630675 | 630,0-647,0 | 675,0-692,0 | 1 | 57,000 | 600 |
