WRFA

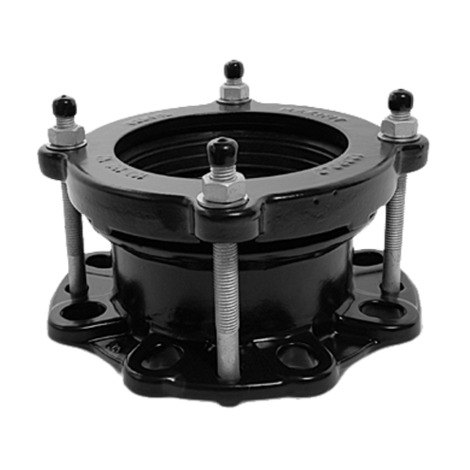

Adaptador de brida de gran alcance (pieza UE)
Adaptador de brida para conectar tuberías de diferentes materiales (acero, fundición, fundición dúctil, fibrocemento, PVC, PE-HD/PEX).
- Carcasa y anillo seguidor de acero
- Protección anticorrosión Rilsan (mín. 250 µm según GSK)
- Tornillos y tuercas galvanizados/revestidos o de acero inoxidable
- Material de la junta EPDM
- Tolerancia de diámetro máx. 17 mm
- Los tubos pueden inclinarse un máximo de 3 grados
- Dimensiones de la conexión de brida según DIN EN1092, PN 10 y PN 16
- Rango de temperatura: -20°C - +30°C
Nota:
Para el uso en tuberías PE-HD/PEX se requiere nuestro manguito de soporte interno SHVA. Como alternativa, recomendamos el producto de bloqueo forzado longitudinal FRIAGRIP.

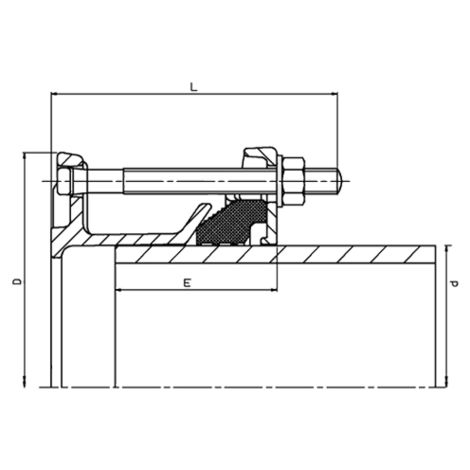

Adaptador de brida de gran alcance (pieza UE)
| Referencia | d | Uds. de embalaje | Uds. por palet | Peso | DN | Flansch DN | Flansch PN |
|---|---|---|---|---|---|---|---|
| GB-14R9-351-30 | 351,0-368,0 | 1 | 4 | 57,000 | 300 | 300 | 10 |
| GB-16R9-351-30 | 351,0-368,0 | 1 | 4 | 57,000 | 300 | 300 | 16 |
| GB-14R9-374-35 | 374,5-391,5 | 1 | 2 | 38,100 | 350 | 350 | 10 |
| GB-16R9-374-35 | 374,5-391,5 | 1 | 2 | 38,100 | 350 | 350 | 16 |
| GB-14R9-394-35 | 394,3-411,3 | 1 | 1 | 45,300 | 350 | 350 | 10 |
| GB-16R9-394-35 | 394,3-411,3 | 1 | 1 | 39,800 | 350 | 350 | 16 |
| GB-14R9-404-40 | 404,8-421,8 | 1 | 1 | 37,900 | 400 | 400 | 10 |
| GB-16R9-404-40 | 404,8-421,8 | 1 | 1 | 39,600 | 400 | 400 | 16 |
| GB-14R9-425-40 | 425,0-442,0 | 1 | 1 | 35,500 | 400 | 400 | 10 |
| GB-16R9-425-40 | 425,0-442,0 | 1 | 1 | 35,500 | 400 | 400 | 16 |
| GB-14R9-447-40 | 447,2-464,2 | 1 | 1 | 45,900 | 400 | 400 | 10 |
| GB-16R9-447-40 | 447,2-464,2 | 1 | 1 | 45,900 | 400 | 400 | 16 |
| GB-14R9-455-40 | 455,0-472,0 | 1 | 1 | 50,000 | 400 | 400 | 10 |
| GB-16R9-455-40 | 455,0-472,0 | 1 | 1 | 45,600 | 400 | 400 | 16 |
| GB-14R9-501-45 | 501,9-518,9 | 1 | 1 | 53,700 | 450 | 450 | 10 |
| GB-16R9-501-45 | 501,9-518,9 | 1 | 1 | 53,700 | 450 | 450 | 16 |
| GB-14R9-501-50 | 501,9-518,9 | 1 | 1 | 53,700 | 500 | 500 | 10 |
| GB-16R9-501-50 | 501,9-518,9 | 1 | 1 | 53,700 | 500 | 500 | 16 |
| GB-14R9-510-50 | 510,0-527,0 | 1 | 1 | 48,000 | 500 | 500 | 10 |
| GB-16R9-510-50 | 510,0-527,0 | 1 | 1 | 53,000 | 500 | 500 | 16 |
| GB-14R9-527-50 | 527,0-544,0 | 1 | 1 | 42,900 | 500 | 500 | 10 |
| GB-16R9-527-50 | 527,0-544,0 | 1 | 1 | 50,500 | 500 | 500 | 16 |
| GB-14R9-540-50 | 540,1-557,1 | 1 | 1 | 50,500 | 500 | 500 | 10 |
| GB-16R9-540-50 | 540,1-557,1 | 1 | 1 | 50,500 | 500 | 500 | 16 |
| GB-14R9-555-50 | 555,3-572,3 | 1 | 1 | 62,000 | 500 | 500 | 10 |
| GB-16R9-555-50 | 555,3-572,3 | 1 | 1 | 64,000 | 500 | 500 | 16 |
| GB-14R9-566-50 | 566,5-583,5 | 1 | 1 | 62,200 | 500 | 500 | 10 |
| GB-16R9-566-50 | 566,5-583,5 | 1 | 1 | 62,200 | 500 | 500 | 16 |
| GB-14R9-582-50 | 582,2-599,2 | 1 | 1 | 54,200 | 500 | 500 | 10 |
| GB-16R9-582-50 | 582,2-599,2 | 1 | 1 | 62,500 | 500 | 500 | 16 |
| GB-14R9-601-60 | 601,0-618,0 | 1 | 1 | 63,000 | 600 | 600 | 10 |
| GB-16R9-601-60 | 601,0-618,0 | 1 | 1 | 65,500 | 600 | 600 | 16 |
| GB-14R9-630-60 | 630,5-647,5 | 1 | 1 | 63,400 | 600 | 600 | 10 |
| GB-16R9-630-60 | 630,5-647,5 | 1 | 1 | 66,100 | 600 | 600 | 16 |
| GB-14R9-645-60 | 645,2-662,2 | 1 | 1 | 63,100 | 600 | 600 | 10 |
| GB-16R9-645-60 | 645,2-662,2 | 1 | 1 | 63,700 | 600 | 600 | 16 |
| GB-14R9-675-60 | 675,0-692,0 | 1 | 1 | 64,400 | 600 | 600 | 10 |
| GB-16R9-675-60 | 675,0-692,0 | 1 | 1 | 78,000 | 600 | 600 | 16 |
Adaptador de brida de gran alcance (pieza UE)
| Referencia | d | Uds. de embalaje | Uds. por palet | Peso | DN | Flansch DN | Flansch PN |
|---|---|---|---|---|---|---|---|
| GB-14R9X351-30 | 351,0-368,0 | 1 | 4 | 32,800 | 300 | 300 | 10 |
| GB-16R9X351-30 | 351,0-368,0 | 1 | 4 | 42,000 | 300 | 300 | 16 |
| GB-14R9X374-35 | 374,5-391,5 | 1 | 2 | 38,100 | 350 | 350 | 10 |
| GB-16R9X374-35 | 374,5-391,5 | 1 | 2 | 38,100 | 350 | 350 | 16 |
| GB-14R9X394-35 | 394,3-411,3 | 1 | 1 | 37,900 | 350 | 350 | 10 |
| GB-16R9X394-35 | 394,3-411,3 | 1 | 1 | 37,900 | 350 | 350 | 16 |
| GB-14R9X404-40 | 404,8-421,8 | 1 | 1 | 36,000 | 400 | 400 | 10 |
| GB-16R9X404-40 | 404,8-421,8 | 1 | 1 | 39,600 | 400 | 400 | 16 |
| GB-14R9X425-40 | 425,0-442,0 | 1 | 1 | 35,500 | 400 | 400 | 10 |
| GB-16R9X425-40 | 425,0-442,0 | 1 | 1 | 33,700 | 400 | 400 | 16 |
| GB-14R9X447-40 | 447,2-464,2 | 1 | 1 | 48,000 | 400 | 400 | 10 |
| GB-16R9X447-40 | 447,2-464,2 | 1 | 1 | 48,000 | 400 | 400 | 16 |
| GB-14R9X455-40 | 455,0-472,0 | 1 | 1 | 41,100 | 400 | 400 | 10 |
| GB-16R9X455-40 | 455,0-472,0 | 1 | 1 | 41,100 | 400 | 400 | 16 |
| GB-14R9X501-45 | 501,9-518,9 | 1 | 1 | 53,700 | 450 | 450 | 10 |
| GB-16R9X501-45 | 501,9-518,9 | 1 | 1 | 53,700 | 450 | 450 | 16 |
| GB-14R9X501-50 | 501,9-518,9 | 1 | 1 | 53,700 | 500 | 500 | 10 |
| GB-16R9X501-50 | 501,9-518,9 | 1 | 1 | 53,700 | 500 | 500 | 16 |
| GB-14R9X510-50 | 510,0-527,0 | 1 | 1 | 50,000 | 500 | 500 | 10 |
| GB-16R9X510-50 | 510,0-527,0 | 1 | 1 | 53,000 | 500 | 500 | 16 |
| GB-14R9X527-50 | 527,0-544,0 | 1 | 1 | 50,500 | 500 | 500 | 10 |
| GB-16R9X527-50 | 527,0-544,0 | 1 | 1 | 50,500 | 500 | 500 | 16 |
| GB-14R9X540-50 | 540,1-557,1 | 1 | 1 | 50,500 | 500 | 500 | 10 |
| GB-16R9X540-50 | 540,1-557,1 | 1 | 1 | 50,500 | 500 | 500 | 16 |
| GB-14R9X555-50 | 555,3-572,3 | 1 | 1 | 62,000 | 500 | 500 | 10 |
| GB-16R9X555-50 | 555,3-572,3 | 1 | 1 | 64,000 | 500 | 500 | 16 |
| GB-14R9X566-50 | 566,5-583,5 | 1 | 1 | 62,200 | 500 | 500 | 10 |
| GB-16R9X566-50 | 566,5-583,5 | 1 | 1 | 62,200 | 500 | 500 | 16 |
| GB-14R9X582-50 | 582,2-599,2 | 1 | 1 | 54,200 | 500 | 500 | 10 |
| GB-16R9X582-50 | 582,2-599,2 | 1 | 1 | 60,000 | 500 | 500 | 16 |
| GB-14R9X601-60 | 601,0-618,0 | 1 | 1 | 63,000 | 600 | 600 | 10 |
| GB-16R9X601-60 | 601,0-618,0 | 1 | 1 | 65,500 | 600 | 600 | 16 |
| GB-14R9X630-60 | 630,5-647,5 | 1 | 1 | 63,400 | 600 | 600 | 10 |
| GB-16R9X630-60 | 630,5-647,5 | 1 | 1 | 66,100 | 600 | 600 | 16 |
| GB-14R9X645-60 | 645,2-662,2 | 1 | 1 | 63,100 | 600 | 600 | 10 |
| GB-16R9X645-60 | 645,2-662,2 | 1 | 1 | 63,700 | 600 | 600 | 16 |
| GB-14R9X675-60 | 675,0-692,0 | 1 | 1 | 64,400 | 600 | 600 | 10 |
| GB-16R9X675-60 | 675,0-692,0 | 1 | 1 | 78,000 | 600 | 600 | 16 |
| GB-14R9X689-60 | 689,0-706,0 | 1 | 1 | 90,300 | 700 | 600 | 10 |
| GB-16R9X689-60 | 689,0-706,0 | 1 | 1 | 90,300 | 700 | 600 | 16 |
| GB-14R9X710-70 | 710,0-727,0 | 1 | 1 | 70,000 | 700 | 700 | 10 |
| GB-16R9X710-70 | 710,0-727,0 | 1 | 1 | 66,500 | 700 | 700 | 16 |
| GB-14R9X733-70 | 733,0-750,0 | 1 | 1 | 74,000 | 700 | 700 | 10 |
| GB-16R9X733-70 | 733,0-750,0 | 1 | 1 | 90,300 | 700 | 700 | 16 |
